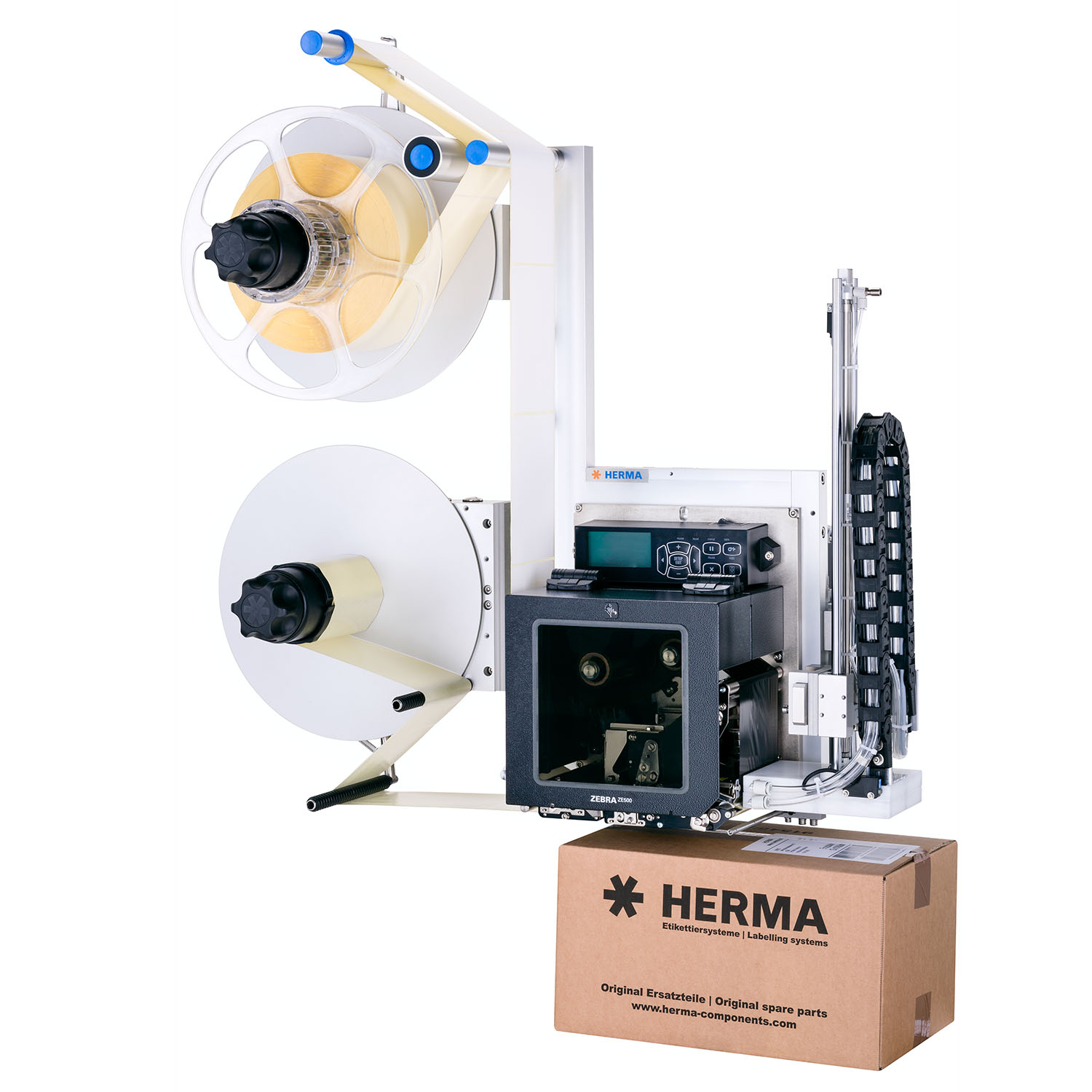

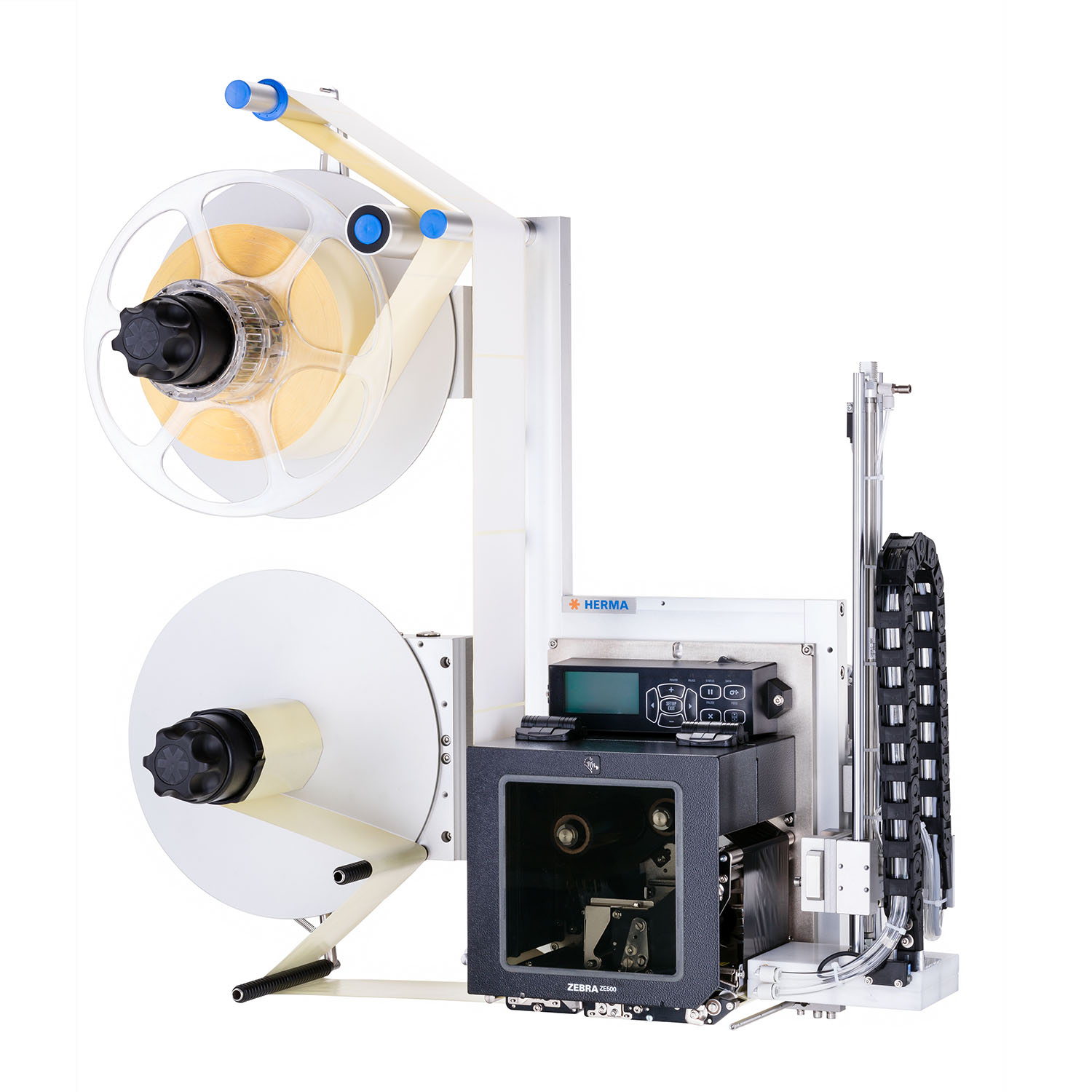

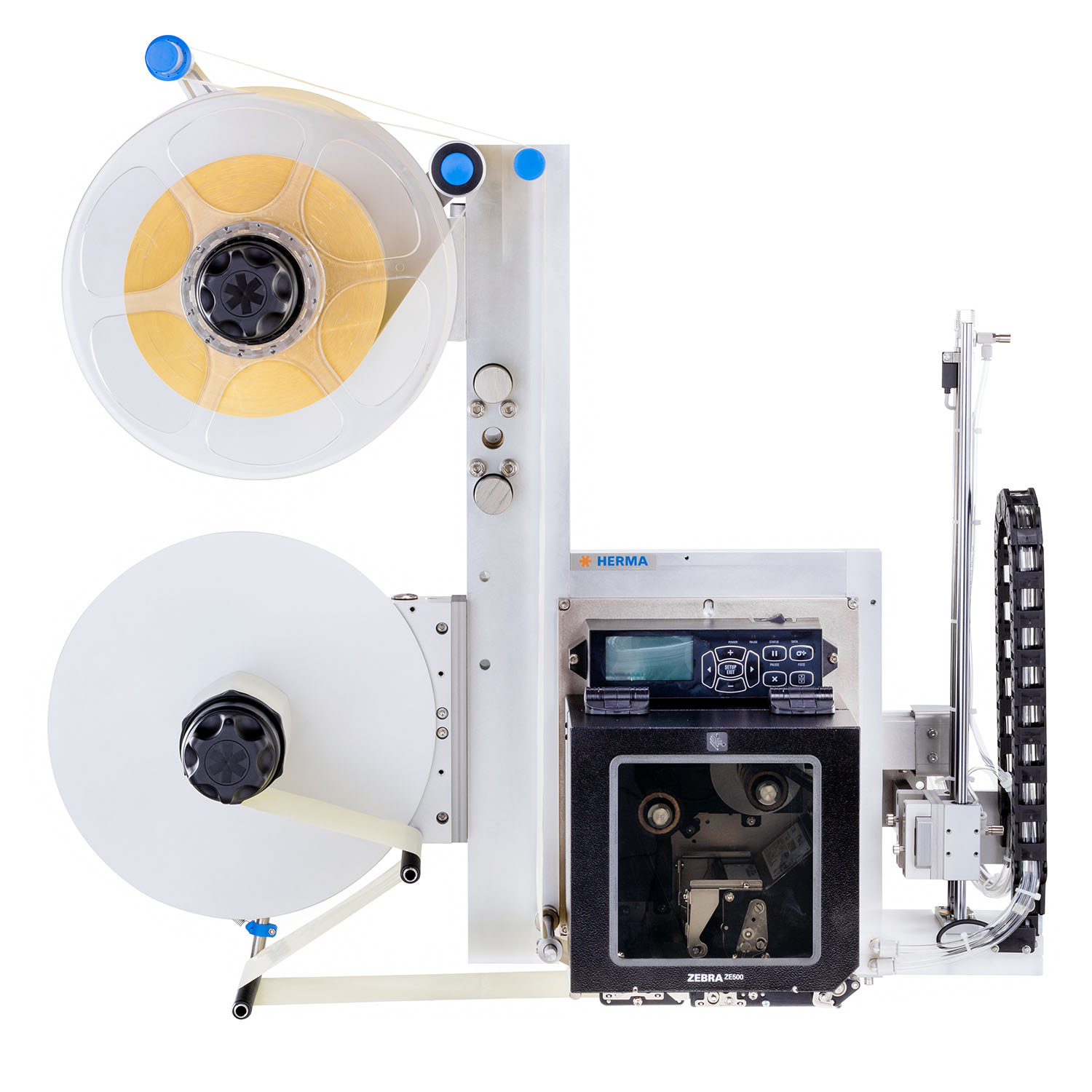

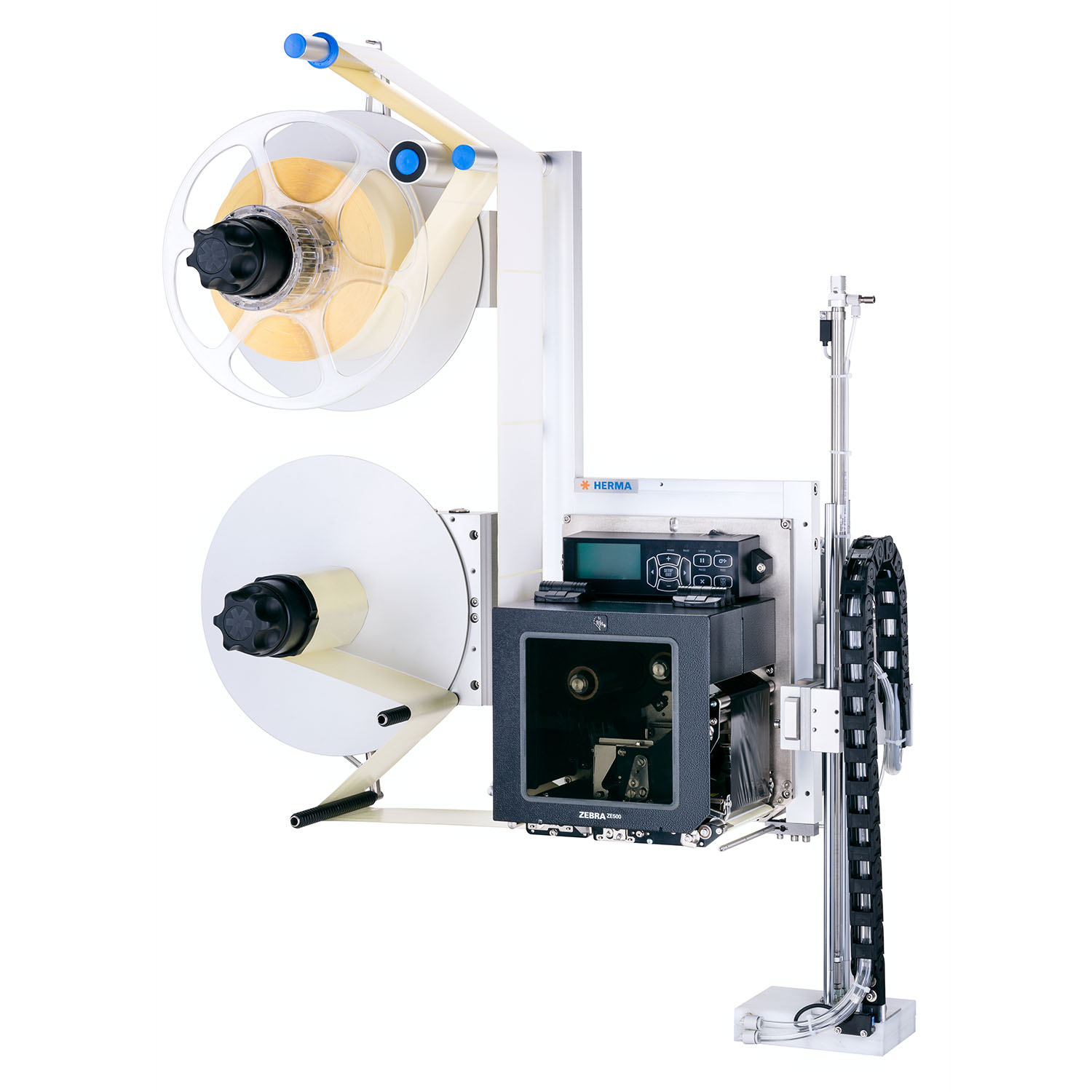

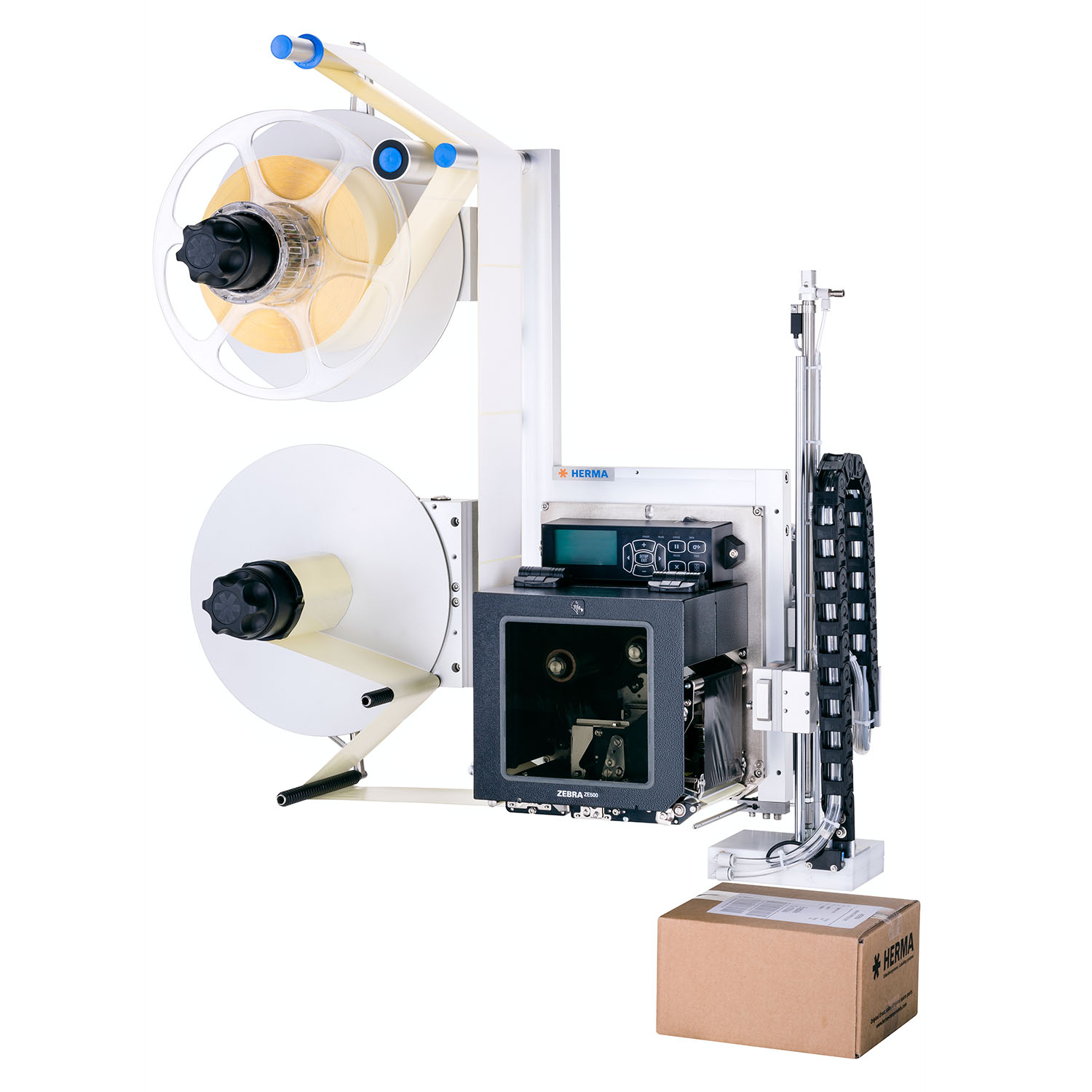

HERMA Print & Apply Systems PA4 / PA6
You want safety when it matters?
The HERMA PA4 / PA6 (Print & Apply) is the ideal device for all users who require durable and hard industrial use and ensures smooth operation and reliable labeling. This print & apply system offers you versatile possibilities.
- Print resolutions of 200, 300 and 600 dpi ensure maximum readability of the printed image
- Standard components from the HERMA modular system guarantee quick and accurate label dispensing
- The devices can be positioned in any orientation and offer many options for integration into existing production lines
2 in 1 - Print and apply labels
The following options for label transfer are available:
- Transfer with vacuum stamp - with product contact
- Transfer with vacuum/blower pad - contactless
- Transfer with beak and pressure roller
- Front side transfer is also possible
PA4 and PA6 Printing & Labeling System - As Flexible as Your Requirements
- Safe labeling
Label transfer immediately after printing ensures that the label is directly assigned to the respective product. The last label printed is applied.
- Modular thinking
Proven standard components from HERMA’s modular system, which are also used in high-performance machines, ensure reliable label application and easy retrofitting.
- Versatile application
Labels can be transferred either via vacuum stamp, contactless with a vacuum/blower pad, or with a beak and pressure roller. Front side transfer is also possible.
- Easy integration
The machines can be positioned in any orientation and offer many integration options for existing production lines, e.g. as left-hand and right-hand units.
- Optimal printing
Industrial printing modules (thermal transfer and direct thermal printing) from all major manufacturers can be integrated, e.g. Zebra, SATO, Carl Valentin, and Datamax.
- Fast connection
The print & apply labeling systems are equipped with all essential interfaces for industrial data transmission. Print data are provided via a Windows printer driver or design software such as Easylabel, Codesoft, or Nicelabel.

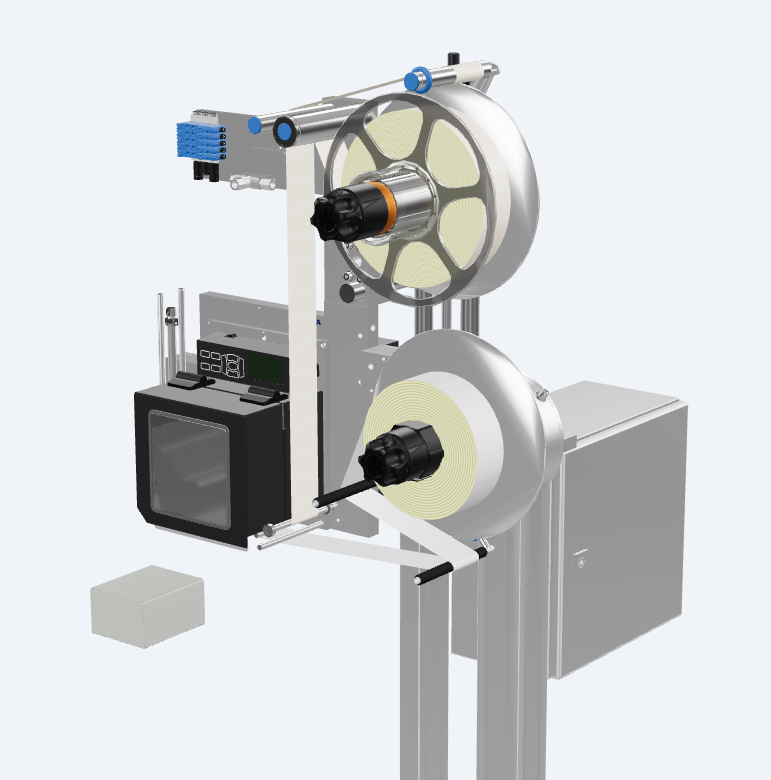

Discover the HERMA Print & Apply Systems PA4 / PA6 as a 3D model
- Click on the blue button to load the HERMA PA4 / PA6 model.
- Click and drag with the mouse to move the HERMA PA4 / PA6 model.
- Scroll with the mouse to zoom.
Specifications
|
Printing method: |
Thermal transfer • Direct thermal printing |
|
Printer: |
Zebra, SATO, Carl Valentin, and Datamax modules |
|
Print resolution: |
200, 300, 600 dpi |
|
Printing speed: |
Up to 300 millimeters / second |
|
Printing dimensions PA4: |
13 - 104 x 13 - 990 mm (W x L) |
|
Printing dimensions PA6: |
76 - 168 x 25 - 990 mm (W x L) |
|
Label passage width PA4: |
Up to 110 mm width |
|
Label passage width PA6: |
Up to 180 mm width |
|
Label material: |
Paper, thermal paper, or plastic (PVC, PP, PE) |
|
Roll diameter: |
300, 400 mm |
|
Core diameter: |
76 mm |
|
Length thermal transfer film: |
Up to 600 m |
|
Components: |
Pedestal, unwind unit, printer, vacuum stamp, rewind unit, signal column, switch cabinet with |
|
integrated control system |
|
|
Options: |
Settings with digital position indicators, product recognition, WIFI |
|
Interfaces: |
RS-232, USB, Ethernet (TCP/IP) |
|
Power supply: |
230 V, 50 Hz, 1 phase |
|
Compressed air supply: |
4 bar |
|
Note: |
If optional features are chosen, the above data may vary. |
